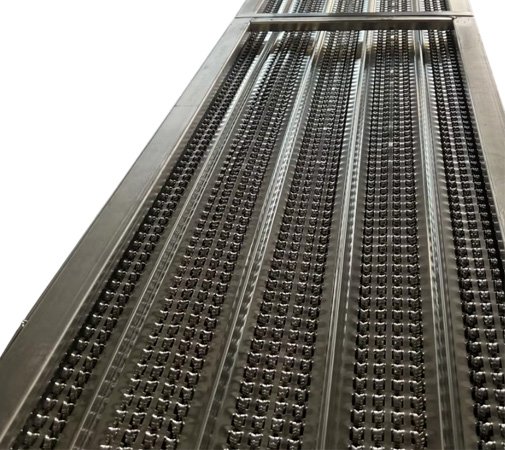

HY-Rib Mesh Expanded Metal Sheet

Home Products HY-Rib Mesh Expanded Metal Sheet

HY-Rib Mesh Expanded Metal Sheet

450mm × 2200mm | For Concrete Construction | Joint Applications | Wall Forming

ISO 9001:2015 Certified
Construction Grade
Permanent Installation

Standard Size

450mm Width

2200mm Length

0.3-0.5mm Thickness

Lightweight Design

Standard Size

450mm × 2200mm (Customizable)

Thickness

0.3mm - 0.5mm (BMT)

Hole Pattern

Diamond/Rib Pattern

Material

Galvanized Steel

Send Inquiry Contact Us Chat Now

Download:

Product Catalog (PDF) Specifications (Excel) Installation Guide (PDF)
CONSTRUCTION BENEFITS

Why Choose HY-Rib Permanent Formwork?

HY-Rib mesh expanded metal sheet provides superior performance for concrete construction applications

Time Saving

Permanent formwork eliminates stripping process, reducing construction time by 30-50%. No formwork removal needed after concrete curing.

Cost Effective

Reduces labor costs and material waste. No need for traditional formwork removal and disposal. Lower overall construction costs.

High Strength

Rib pattern provides excellent concrete bonding and structural reinforcement. Superior load-bearing capacity for wall and joint applications.

Concrete Bonding

Expanded metal pattern creates mechanical bond with concrete, preventing separation and ensuring structural integrity.

Eco-Friendly

Permanent installation reduces construction waste. 100% recyclable material. No formwork disposal required.

Easy Installation

Lightweight design (450mm × 2200mm) for easy handling. Simple fixing with nails, screws, or welding. Minimal training required.

PRODUCT FEATURES

Key Features of HY-Rib Mesh

Expanded Metal Pattern

Diamond/rib pattern design provides excellent concrete adhesion and prevents slippage during pouring

Galvanized Protection

Hot-dip galvanized coating provides corrosion resistance for long-term durability in concrete

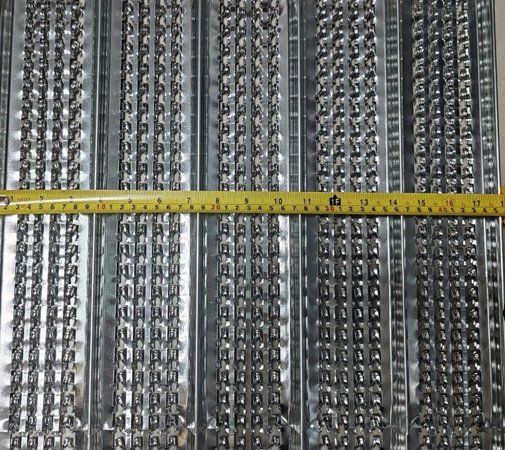

Standard Dimensions

450mm width × 2200mm length - optimized for easy handling and efficient coverage

Lightweight Design

Thin gauge (0.3-0.5mm) reduces weight while maintaining structural strength

Joint Applications

Ideal for construction joints, preventing concrete leakage and ensuring proper bonding

Wall Forming

Perfect for concrete wall construction, providing permanent reinforcement and formwork

INSTALLATION GUIDE

How to Install HY-Rib Formwork

1

Surface Preparation

Clean and prepare the base surface. Ensure proper alignment and support structure is in place.

2

Positioning

Position HY-Rib sheets (450mm × 2200mm) at the desired location. Overlap adjacent sheets by 50-100mm.

3

Fixing

Secure sheets using nails, screws, or welding. Fix at 150-200mm intervals along edges and supports.

4

Concrete Pouring

Pour concrete as normal. The rib pattern will grip the concrete and prevent leakage during pouring.

SPECIFICATIONS

Technical Specifications

Product Name HY-Rib Mesh Expanded Metal Sheet - Permanent Formwork
Standard Size 450mm (Width) × 2200mm (Length)
Thickness 0.3mm - 0.5mm (BMT - Base Metal Thickness)
Material Galvanized Steel (Q195, Q235)
Hole Pattern Diamond/Rib Pattern (Expanded Metal)
Surface Treatment Hot-Dip Galvanized
Weight Approximately 1.5-2.5 kg/sheet (depending on thickness)
Overlap Requirement 50-100mm overlap between adjacent sheets
Fixing Method Nails, Screws, or Welding (150-200mm intervals)
MOQ 100 sheets (Negotiable)
Supply Ability 100,000 sheets per month
Certification ISO 9001:2015
APPLICATIONS

Application Areas

Concrete Wall Forming

  • Residential building walls
  • Commercial construction
  • Basement walls
  • Retaining walls

Joint Applications

  • Construction joints
  • Expansion joints
  • Column-beam joints
  • Slab connections

Infrastructure

  • Bridge construction
  • Tunnel lining
  • Highway barriers
  • Drainage systems

Water Structures

  • Water tanks
  • Swimming pools
  • Reservoirs
  • Water treatment facilities

Industrial

  • Factory floors
  • Industrial platforms
  • Storage facilities
  • Foundation work

Residential

  • House construction
  • Boundary walls
  • Garage floors
  • Home improvements
CERTIFICATIONS

Quality Assurance

Our products meet international quality standards

ISO 9001:2015
Construction Grade
Trade Assurance
Verified Supplier

Frequently Asked Questions (FAQ)

Q1: What is HY-Rib mesh expanded metal sheet?

HY-Rib mesh is a type of permanent formwork made from expanded metal sheet. It features a rib/diamond pattern that provides excellent concrete bonding. The standard size is 450mm × 2200mm with thickness ranging from 0.3mm to 0.5mm. It remains in place after concrete pouring, eliminating the need for formwork removal.

Q2: What are the standard dimensions?

Our standard HY-Rib mesh dimensions are:

  • Width: 450mm
  • Length: 2200mm
  • Thickness: 0.3mm - 0.5mm (BMT)
  • Weight: Approximately 1.5-2.5 kg/sheet

Custom sizes are available upon request.

Q3: What are the main applications?

HY-Rib mesh is primarily used for:

  • Concrete wall forming: Residential, commercial, and industrial walls
  • Joint applications: Construction joints, expansion joints, column-beam connections
  • Infrastructure: Bridges, tunnels, highways
  • Water structures: Tanks, pools, reservoirs
Q4: How do I install HY-Rib formwork?

Installation is simple:

  1. Prepare and clean the base surface
  2. Position sheets at desired location (450mm × 2200mm)
  3. Overlap adjacent sheets by 50-100mm
  4. Secure with nails, screws, or welding at 150-200mm intervals
  5. Pour concrete as normal

The rib pattern grips the concrete and prevents leakage.

Q5: What is the minimum order quantity (MOQ)?

Our standard MOQ is 100 sheets for HY-Rib mesh expanded metal. However, we're flexible and can negotiate based on:

  • Project requirements
  • Customization needs
  • Long-term cooperation potential
Q6: Can you customize the size?

Yes! We offer custom sizes:

  • Width: 300mm - 600mm
  • Length: 1000mm - 3000mm
  • Thickness: 0.2mm - 0.6mm

Please contact us with your specific requirements for a quotation.

Q7: What is your lead time?

Our typical lead times are:

  • Standard size: 7-10 days
  • Custom orders: 10-15 days
  • Large quantities: 15-20 days (depending on order size)

We offer fast delivery via sea freight, air freight, or express courier.

Q8: Do you provide installation guidance?

Yes! We provide comprehensive support:

  • Installation guide: PDF download available
  • Technical support: Free consultation on material selection and installation
  • Video tutorials: Step-by-step installation videos
  • On-site support: Available for large projects (additional cost)
Q9: How do you ensure product quality?

Quality is our top priority. Our quality assurance measures include:

  • Raw material inspection: All steel tested before production
  • In-process quality control: Regular checks during manufacturing
  • Dimensional inspection: Size and thickness verification
  • Final inspection: 100% inspection before packaging
  • Certifications: ISO 9001:2015 certified
Q10: Do you provide samples?

Yes, we provide samples for quality evaluation:

  • Sample cost: Free for standard products
  • Custom samples: Charged at cost, refundable upon bulk order
  • Shipping: Customer pays shipping cost
  • Sample size: Small cut pieces (approximately 200mm × 300mm)

Please contact us for sample requests.
